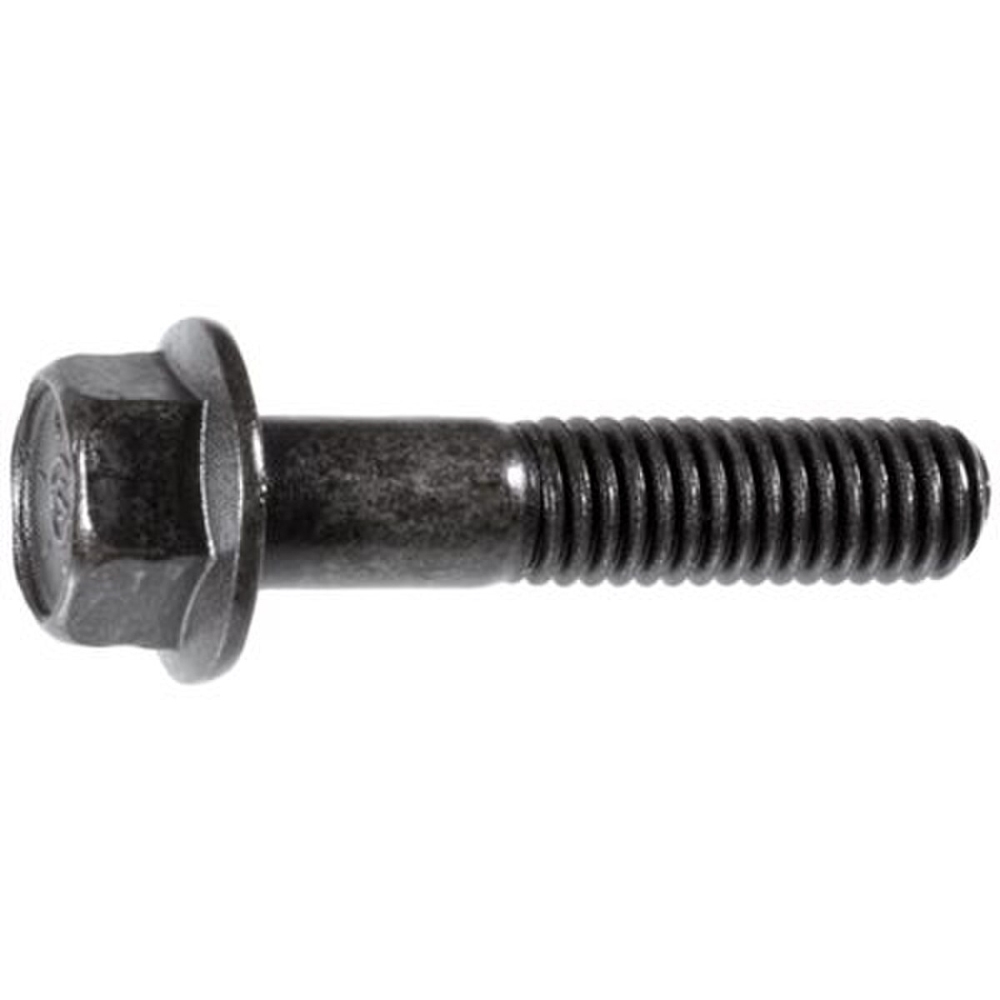

5/8"-18 X 2-3/4" SAE Hex Flange Bolt Grade 8

5/8-18 X 2-3/4 Sae Flange Bolt

Package Price: $48.74


Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
PRODUCT CODE: A14498
QTY (# Of Packages):

Description

  • Grade 8 Hex Flange Bolt
  • 5/8 x 2-3/4"
  • Flange & Nut Diameter: 1.300"/1.330"
  • Screw & Nut Across Flats: .922"/.937"
  • Screw Head Height: .600"/.620"
  • Nut Height: .680"/.690"
  • Minimum Screw Thread Length: 1-1/2"
  • S.A.E. (Fine) Threads Per Inch: 18
  • 10 Per Package
